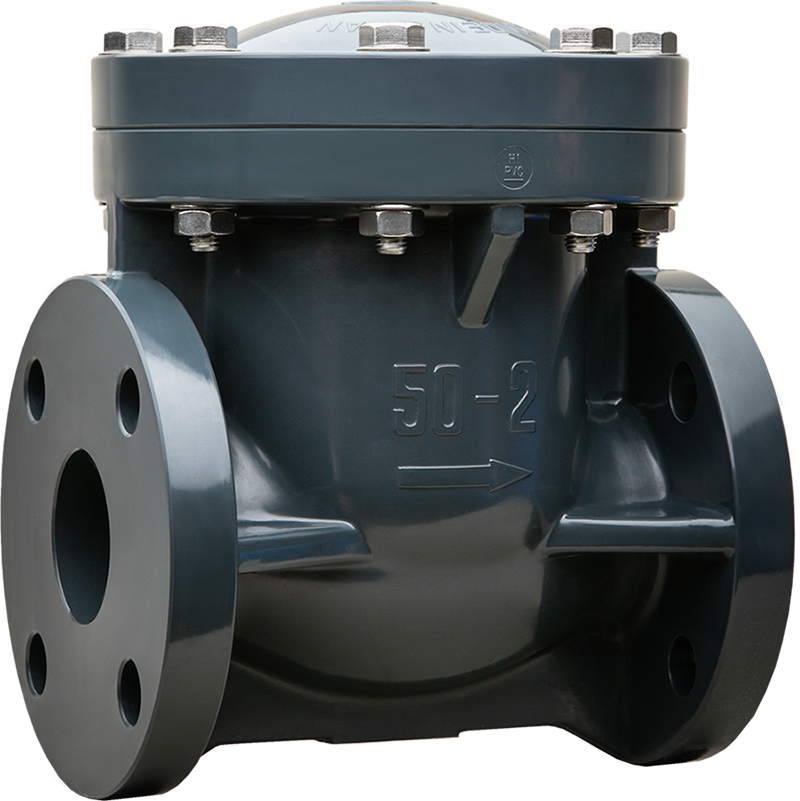

Solid thermoplastic body with large flapper design. Features removable bonnet for easy cleaning without pipeline removal. Available in standard and EL-PVDF for extreme electrolysis applications.
View Specifications
Extended life for extreme electrolysis applications
EL-PVDF swing check valve designed specifically for electrolysis plants in high temperature sodium hypochlorite, chlorine gas, brine, and hydrofluoric acid applications. Prevents blistering and cracking while achieving 2-5 times the normal life expectancy compared to conventional PVDF in electrolysis applications.
Large flapper seats against valve body providing reliable one-way flow control.
Top access cover allows cleaning and maintenance without removing valve from pipeline.
Large fluid area design provides low pressure drop and minimal flow resistance.
Horizontal or vertical installation with minimum back pressure for proper seating.
All sizes rated for full vacuum service for demanding applications.
Fully thermoplastic construction for maximum chemical resistance and corrosion protection.
All PVC parts made of high impact PVC for superior strength and durability.
Spring assists and lever/weight mechanisms available to reduce water hammer concerns.
Special EL-PVDF material achieves 2-5x life expectancy in electrolysis applications.
Removable bonnet allows valve cleaning and maintenance without pipeline removal.
Swing design provides large fluid area for minimal pressure drop and high flow rates.
Top access design beneficial for installations that may contain debris or clogging materials.
Optional spring assists and lever/weight mechanisms reduce water hammer concerns.
EL-PVDF option performs in the most severe electrolysis working conditions.
EL-PVDF prevents blistering and cracking, achieving 2-5x longer life in electrolysis.
