Dymatrix® Technology
AVSDV Series • Single Diaphragm

Diaphragm Valve - Pneumatic

Economical solution for commodity diaphragm valve applications. Large size range with multiple connection options. Available with air actuated, manual multiturn, and toggle actuators. High cycle life with compact design. Stocked PFA models include manual multi-turn and pneumatic normally closed.

View Specifications

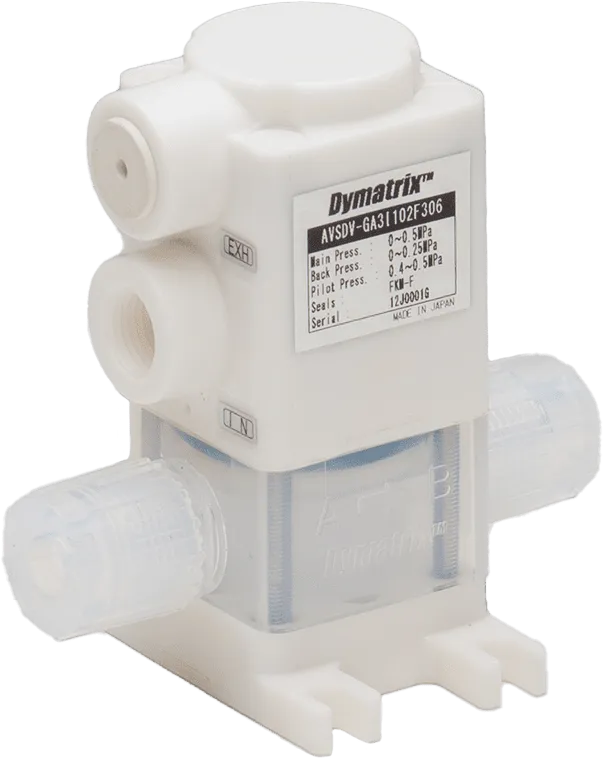

Dymatrix Diaphragm Valve Pneumatic

Key Features

💰

Economical Solution

Cost-effective commodity diaphragm valve solution for standard on/off applications.

📏

Large Size Range

Wide variety of sizes from 6mm to 32mm (1/4″ – 1″) for diverse application needs.

🔄

High Cycle Life

Excellent durability with high cycle life for long-term reliable operation.

📦

Compact Design

Space-saving compact design ideal for installations with limited space.

🔧

Multiple Connections

Flare, S-300, and custom connection options for system compatibility.

📊

Indicator & Controls

Features travel stop, bypass capability, and position indicator for enhanced operation.

Technical Specifications

Size Range

  • 6mm (1/4″)
  • 10mm
  • 15mm
  • 20mm
  • 25mm
  • 32mm (1″)

Models

  • Pneumatic

Connection Types

  • Flare
  • S-300
  • Custom options

Valve Features

  • Travel Stop
  • Bypass
  • Indicator

Handle & Base Options

  • Wide variety of handle types
  • Multiple base plate options

Performance

  • Excellent durability
  • High cycle life
  • Compact design

Actuator Options

💨

Air Actuated

Pneumatic actuation for automated control and process integration. Ideal for remote operation and system automation.

🔄

Manual Multiturn

Manual multiturn actuator for precise manual control and throttling applications requiring fine adjustment.

🔀

Toggle Actuator

Quick-action toggle actuator for rapid on/off operation and easy manual control in accessible locations.

📦

Stocked PFA Models

For faster delivery and immediate availability, stocked PFA models include manual multi-turn diaphragm valves and pneumatic normally closed configurations. These ready-to-ship options reduce lead times for common applications.

✓ In Stock for Fast Delivery

Design Benefits

✓
Economical: Cost-effective solution for commodity diaphragm valve applications
✓
Excellent Durability: High cycle life ensures long service and reduced maintenance
✓
Size Variety: Large size range accommodates diverse flow requirements
✓
Handle Options: Wide variety of handle types for operational preferences
✓
Base Plate Flexibility: Multiple base plate options for mounting versatility
✓
Travel Stop: Built-in travel stop prevents over-tightening
✓
Bypass Capability: Bypass feature for system versatility
✓
Position Indicator: Visual confirmation of valve position
✓
Compact Design: Space-efficient footprint for tight installations
✓
Stocked Models: PFA models available for fast delivery

Ideal Applications

DI Water Systems
Chemical Flow
Air Control
On/Off Control
High Purity Systems
Semiconductor Manufacturing
Process Control
General Purpose
