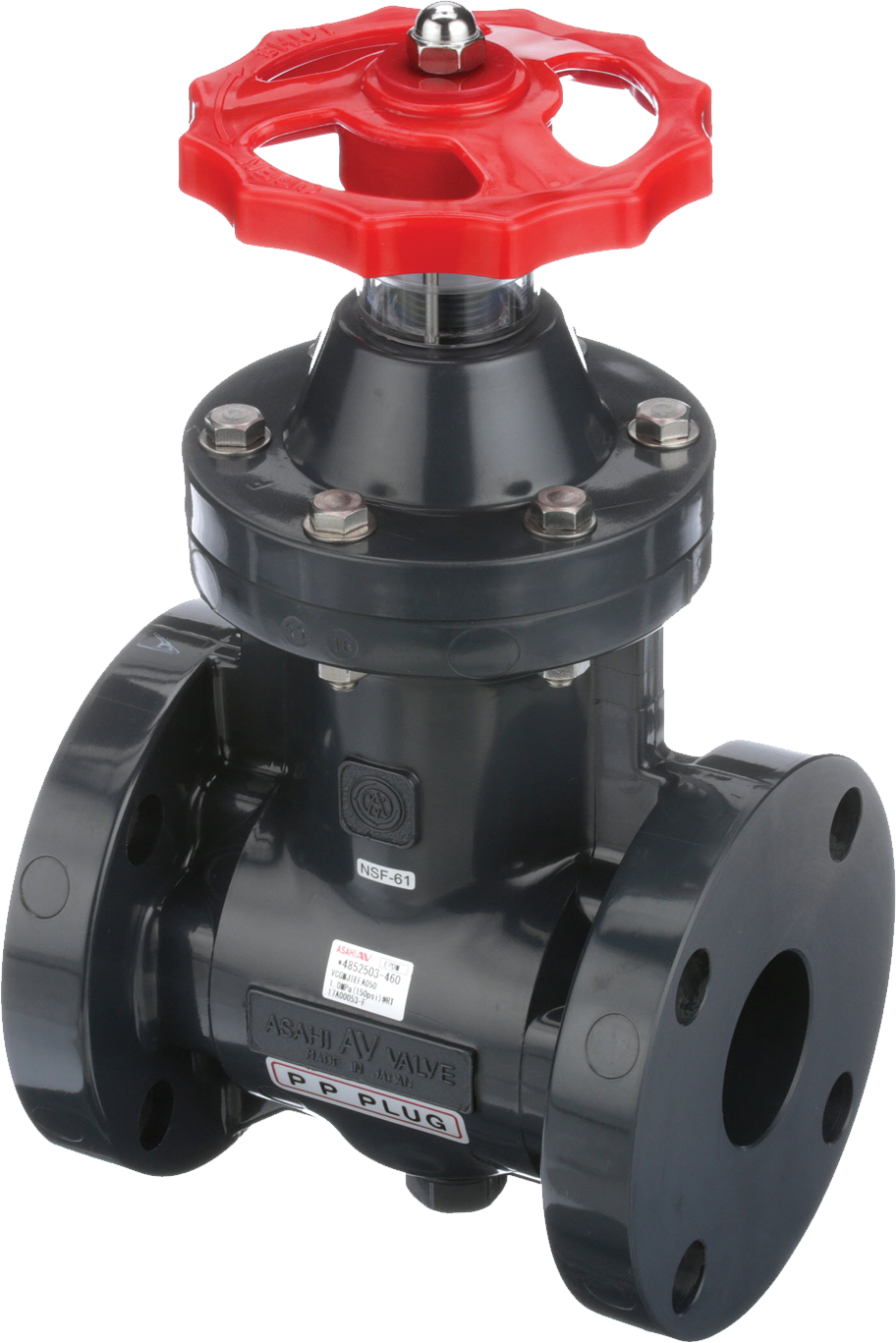

The most widely used on/off valve for large diameter, full port applications. Features straight-through passage with minimal pressure drop and unique sliding cylindrical plug design. Solid polypropylene plug with non-rising stem design for reliable performance and virtually eliminated valve chatter.
View Specifications
When fully open, the valve allows straight-through passage with an opening essentially the same size as the inside diameter of the connecting pipe. The handwheel and stem screw (or electric actuator) move a cylindrical plug, the gate, up and down at right angles to the fluid flow. The unique sliding plug design provides a larger seating area that runs 360 degrees around the cylindrical plug.
1½″–14″
Flanged
PP
Minimal pressure drop with full port design allowing unobstructed flow when fully open.
Cylindrical plug provides larger seating area than conventional gate valves, running 360 degrees around the plug.
Made of corrosion-resistant plastic with no metal-to-media contact anywhere in the valve.
Convenient drain plug in bottom area of valve body for easy maintenance and cleaning.
Rated for full vacuum service across all sizes for versatile applications.
Light weight construction for easier and more economical installation.
Certified for drinking water applications, ensuring safety and compliance with international quality standards.
For gate valves from 1½″ – 14″, contact us for detailed specifications, material recommendations, seal options, and custom solutions for your application. Our experienced team specializes in large diameter valve systems and can help you select the ideal configuration.
