Fume Scrubbers

Custom Pollution Control Solutions

Explore Our Systems
Fume Scrubber System 1

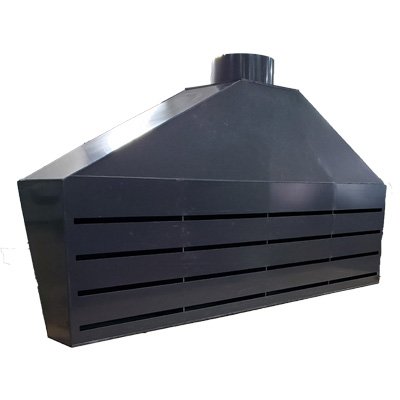

Fume Scrubber System 2

Custom Fume Scrubbers

Harrison's fume scrubbers are manufactured out of solid PVC and Polypropylene and packed with different plastic materials. Our expertise in thermoplastic fabrication ensures optimal performance for your pollution control needs.

Larger fume scrubbers and those operating at higher temperatures and moderate pressure are fabricated with a thinner internal thermoplastic barrier of PVC, Polypropylene, CPVC, and PVDF with the exterior reinforced with fiberglass. We also offer solid fiberglass scrubbers for the most demanding applications.

Scrubber Configurations

⬆️

Vertical Counter Current

Vertical counter current style scrubbers provide maximum gas-liquid contact efficiency. The contaminated air flows upward while the scrubbing liquid flows downward, creating optimal conditions for pollutant removal.

➡️

Horizontal Cross Flow

Horizontal cross flow fume scrubbers offer space-efficient installation with excellent scrubbing performance. The air flows horizontally while the scrubbing solution flows perpendicular to the air stream.

Construction Materials

Solid PVC

Cost-effective solid PVC construction for standard applications. Excellent chemical resistance and durability for most industrial fume scrubbing needs.

Solid Polypropylene

Superior chemical resistance with higher temperature capability. Ideal for more aggressive chemical environments and elevated temperature applications.

Thermoplastic Barrier

Advanced construction using PVC, PP, CPVC, or PVDF internal barriers with fiberglass reinforcement for high-temperature and moderate-pressure applications.

Solid Fiberglass

Maximum durability and temperature resistance. Perfect for the most demanding industrial applications requiring superior strength and corrosion resistance.

Temperature Limitations of Plastic Materials

Material Maximum Temperature
PVC 140°F
Polypropylene & CPVC 180°F
FRP (Fiberglass) 210°F
PVDF 250°F

Auxiliary Equipment Available

🔄

Recirculation Tanks

⚗️

PH Control Systems

🌀

Exhaust Fans

💧

Pumps

☂️

Exhaust Hoods

📏

Ductwork

Complete System Engineering

Turn-Key Exhaust Solutions

Harrison can provide equipment engineering and fabrication of complete exhaust systems for the metal finishing and chemical industries. Our experienced team handles everything from design to installation.

We can furnish auxiliary equipment for the scrubber, such as remote or integral recirculation tanks, PH control systems, exhaust fans, pumps, and required exhaust hoods and ductwork.

Send us your design for your pollution control system, and let us bring your vision to life!
